Latest revision as of 23:22, 3 November 2020

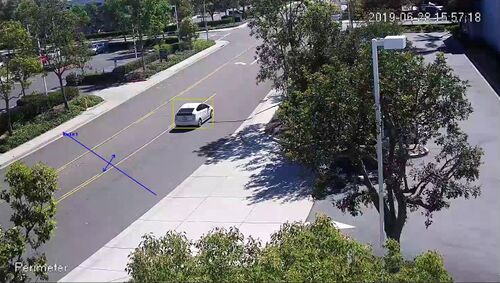

	Perimeter Protection adds the ability to use an Object Filter on several IVS features. The Object Filter can be set for Human or Motor Vehicle detection. Supported on IVS Features: Tripwire, Intrusion, Fast Moving

	Perimeter Protection
Set Up	Configure Alarm Trigger	Notifications
Set Up Perimeter Protection on your device using various interfaces. > How To Set Up Perimeter Protection Alarm	Configure responses when the Perimeter Protection alarm is triggered, such as email notifications or alarm output. > Configure Alarm Response	Receive notifications using the mobile app > Set Up Notifications

[hide | ◄ ► | × ]

SystemUI Old

This guide will show how to set up the Perimeter IVS function in the SystemUI with OldGUI

1. From the Main Menu

Click Event

2. Click Smart Plan

3. Use the dropdown box to select the channel

Click the IVS icon (light bulb) to enable the function

4. Click Apply to save

5. Click IVS

6. Click Add to create a new IVS rule

7. Click the Pencil icon under Draw to create the rule

8. The video will full screen

Use the AI recognition interface to enable and set which Effective Targets (targets that will be valid)

Click OK

9. To draw the rule left click inside the video frame to begin drawing

10. Right click to finish drawing

The Rule name will confirm when drawing is complete

11. Click Apply to save all settings

SystemUI New
