Troubleshoot/NVR/Motion Detect PTZ Activation

Description

This article is to show how to call/ link/ activate PTZ camera when motion triggered on the other camera channel in the recorder.

Prerequisites

  • Dahua IPC or Analog
  • Dahua NVR or XVR
  • Dahua PTZ Camera

Video Instruction

coming soon

Step by Step Instruction

1. Login to Dahua recorder from local system interface.

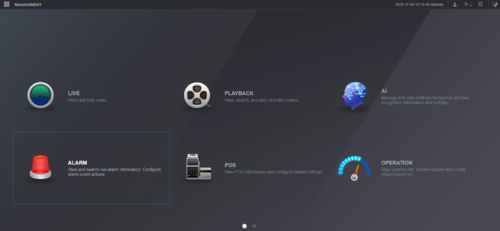

2. Go to Alarm.

NVR Web UI Alarm.png

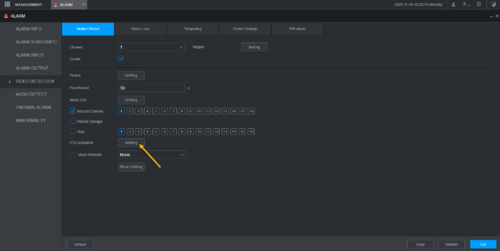

3. Go to Video Detection > Motion Detect.

4. Select the camera channel that you wish to call PTZ camera when motion triggered.

5. Click on "Settings" button under PTZ Activation.

Motion Detect PTZ Activation.png

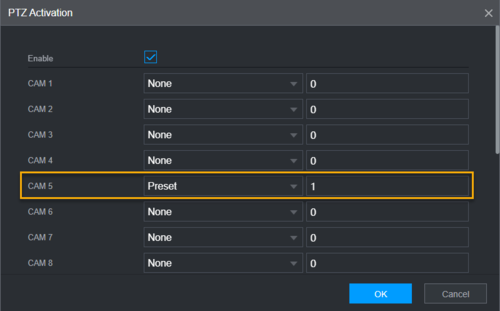

6. Select the PTZ camera channel and specify the preset number. Then Click OK.

PTZ Activation.png

7. Click OK again to save the settings.
