DHI-ASI7213X-T1 Advertisement Management

Description

This guide will cover how to manage/use the advertisement feature on DHI-ASI7213X-T1

You can put a picture or promotional video that will be displayed when the device is in standby

Prerequisites

  • DHI-ASI7213X-T1 (Firmware Version 1220786_Customer_ASI72XXX_EngFrn_NP_V1.000.10BE002.0.R.200904)
  • Device connected to network
  • Local computer to access webUI


  • Image requirements
    • files must be jpg/png/dav file format
    • Resolution: 600x1024
    • Less than 512k in size


  • Video requirements
    • files must be DAV file format
    • Less than 20MB in size
    • 60 seconds/ 1 Minute or less in length.


You can use Video Format Conversion Tool to convert videos to the correct format

Click here to download

Video Instruction

Coming Soon

Step by Step Instruction

1. Login to the DHI-ASI7213X-T1 webUI by typing the IP address into a local browser and entering the username and password

Navigate to Advertisement Mgmt.

DHI-ASI7213X-T1 Advertisement Management - WebUI - 1.png

Toggle to enable.

Time Section is the video playback time.

Switching Time is for the images playback, if users upload several images, the switch time is the interval time of each image display.


2. Click Add to upload the video and images that you want to display in standby, taking note of the file requirements

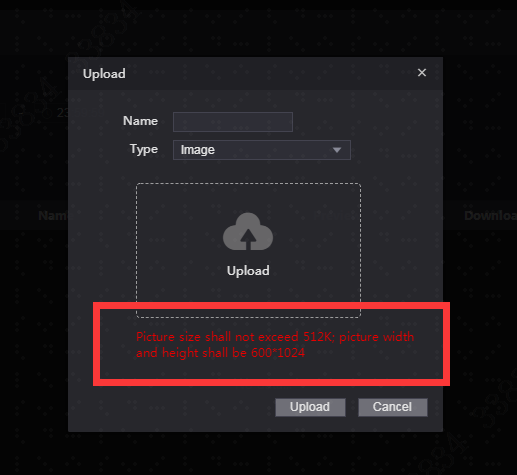

DHI-ASI7213X-T1 Advertisement Management - WebUI - image upload.png

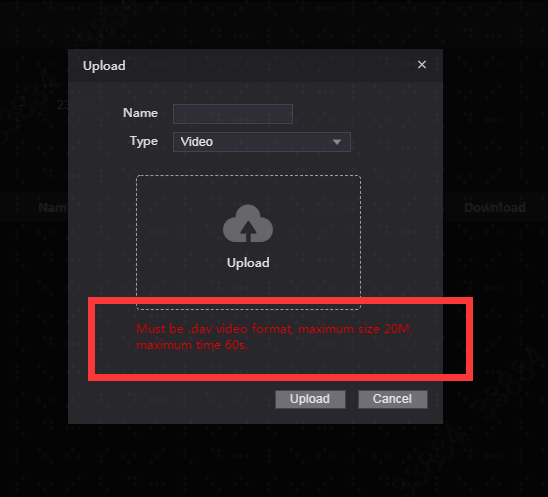

DHI-ASI7213X-T1 Advertisement Management - WebUI - video upload.png

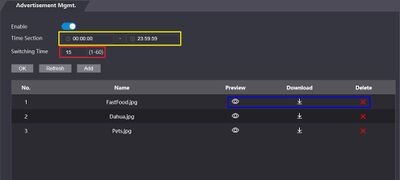

Explanation of Functions

Yellow: The time period during which advertisements will play on the screen. Only one period can be set.

Red: The time that each advertisement is displayed, can be set from 1second up to a minute. If videos are being used Switch time should be set to the length of the longest video used.

Blue: Advertisement management options. Can remove, download or preview selected files.


Kiosk Ads.JPG
