How to Capture Snapshots and Videos

Description

This article covers how to take snapshots and videos on a DH-TPC-HT2201

Prerequisites

  • DH-TPC-HT2201
  • A micro SD Card installed and formatted

Micro SD Card MUST be Micro SD HC. Micro SD XC is not compatible.

Video Instructions

Step by Step Instructions

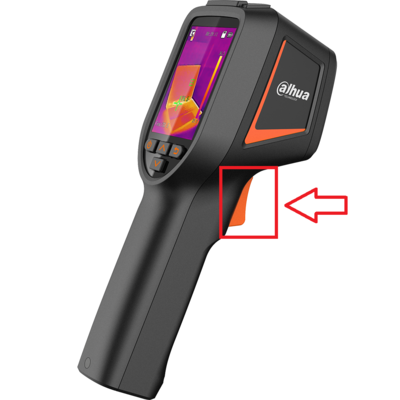

1. To take a snapshot on the Handheld Thermal Temperature Monitoring Device, from the live view, pull the trigger 2 times

DH-TPC-HT2201 SnapshotsVideo1.PNG

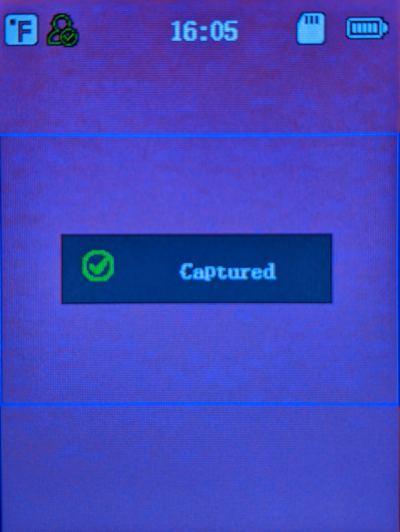

2. If you successfully took a snapshot, you should see a message on the screen that says "Captured" with a check mark next to it.
The snapshot will be accessible from the installed SD Card

DH-TPC-HT2201 SnapshotsVideo2.PNG

3. To take a video on the Handheld Thermal Temperature Monitoring Device, from the live view, pull the trigger 3 times

DH-TPC-HT2201 SnapshotsVideo1.PNG

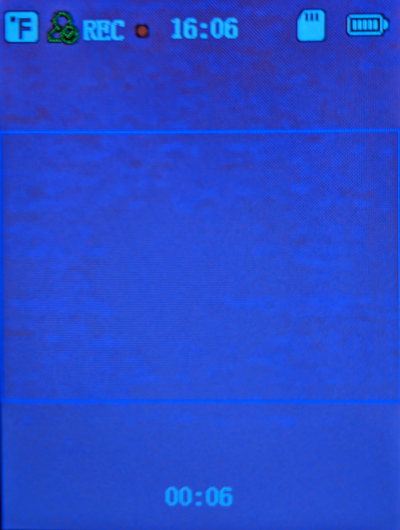

4. If you successfully started recording video, you should see a time counter at the bottom of the screen counting up

DH-TPC-HT2201 SnapshotsVideo3.PNG

5. When you are done recording video, pull the trigger 3 times to stop recording

DH-TPC-HT2201 SnapshotsVideo1.PNG

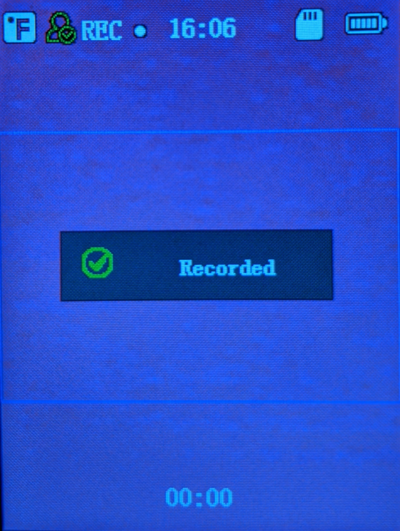

6. If you successfully stopped recording video, you should see a message on the screen that says "Recorded" with a check mark next to it.
The recorded video will be accessible from the installed SD Card

DH-TPC-HT2201 SnapshotsVideo4.PNG
