How to Dewarp a Fisheye Camera's Recorded Video via SmartPSS Version 2

Description

Prerequisites

  • SmartPSS.
  • Fisheye Camera.
  • NVR connected to Fisheye with HDD installed.

Video Instructions

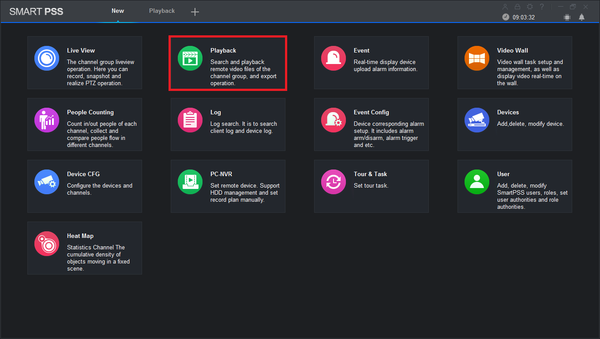

1. From the Main Menu Select "Playback".

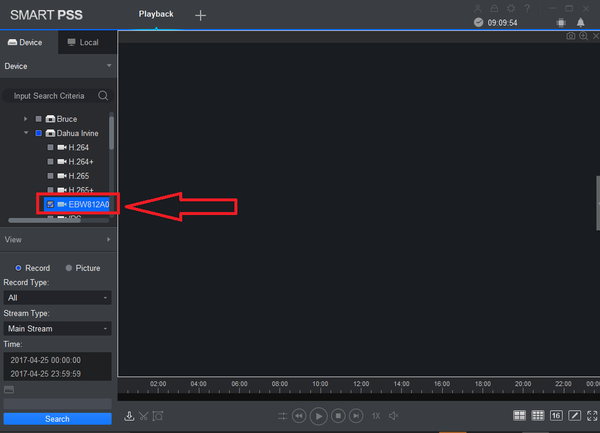

2. From the left select the Fish Eye for de-warp playback

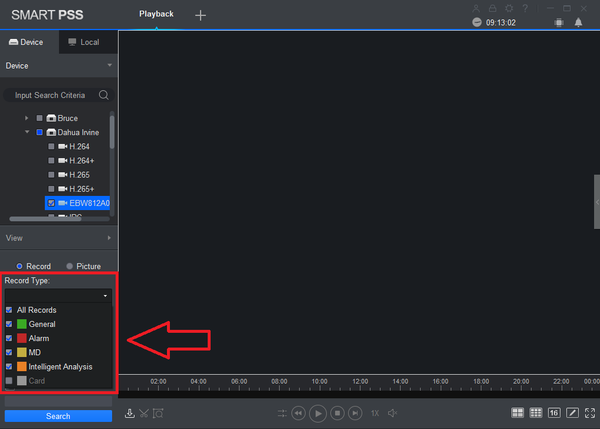

3. Select Record Type.

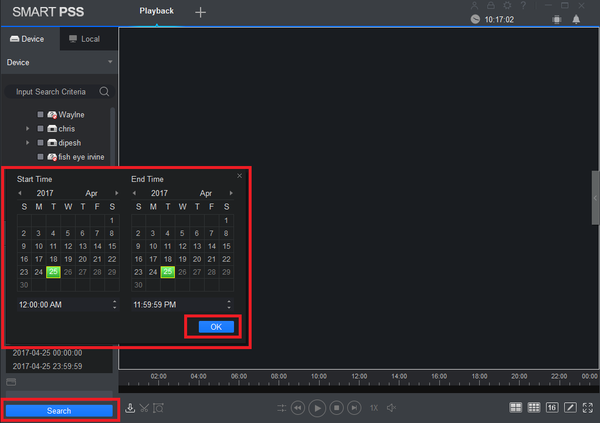

4. Select Date and time -> Select OK -> Select Search

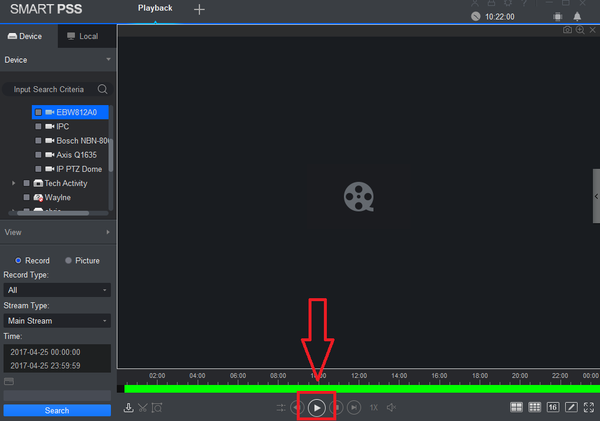

5. Select the Play Button

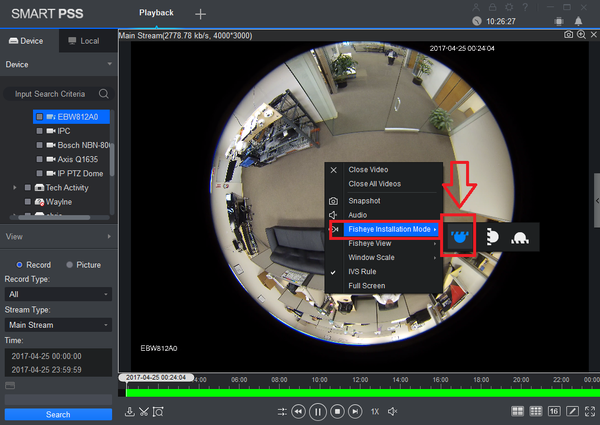

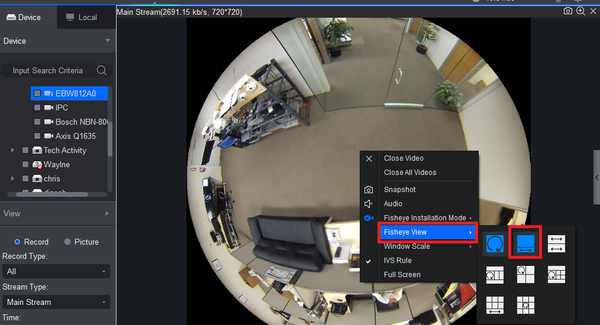

7. Right Click to show sub-menu -> Select Fisheye Installation mode and select a view > Select Fisheye View

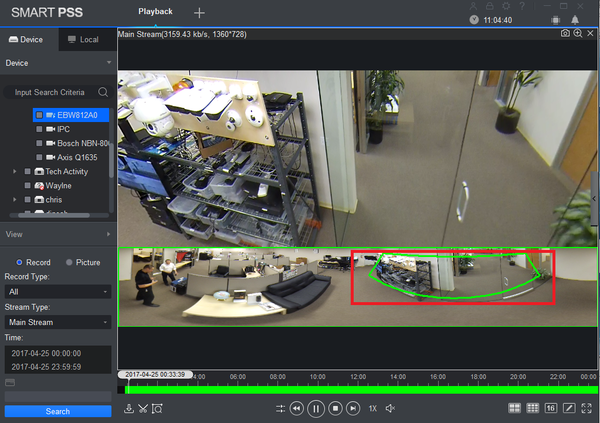

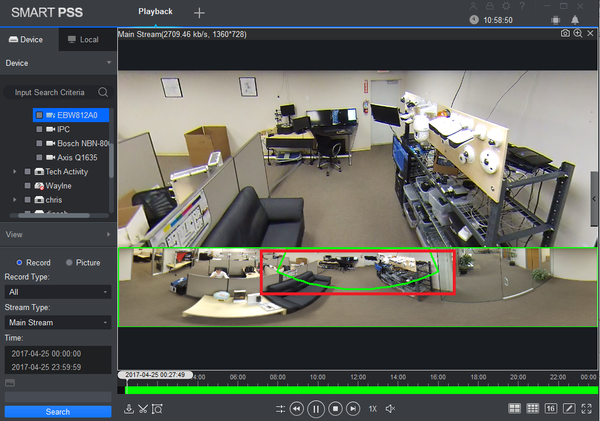

8. Left click and hold down. Drag to pan around fisheye de-warp
