SmartPSS/Backup SD Card

Download Video from SD-Card in SmartPSS


Follow the instructions below to download video via an IP camera's SD-Card in SmartPSS


  • Computer with SmartPSS installed
  • Connection to an IP camera with a recording on its SD-Card

Video Instructions

Step by Step Instructions

1. From the Home Page on SmartPSS select the “PlayBack Button”

Smart pss playback from home page.png

2. From the PlayBack Page on the right hand side select “Camera or Channel” for the footage you need to backup. Multiple cameras or channels may be selected.

Smart pss channel or camera selection.png

3 . Select "Record or Picture" for the content you would like to backup.

Smart pss select record or picture.png

4. Select which one of the options "Type" (such as Motion Detection) you nedd to backup.

Smart pss select motion general recordings.png

5. Select the stream "Main or Sub".

Smart pss select main or sub.png

6. Select and choose “From Date and time” , "To Date and time"

Smart pss select from to date.png

7. Select "Search".

Smart pss search button selection.png

8. Select or Check which footage you need to export or download. Video footage can be viewed by clicking on the "Play" button and by selected events.

Smart pssSelect event to download.png
Smart pss playback to view.png

9. You may trim the video footage if the "Record tab" is selected. You will need to click the scissor or trim icon to trim the selected video.

Smart pss record tab.png
Smart pss trim icon.png

10. On the "Event" tab you will need to select or check the events you want to save e.g (1, 2, 3, 4). Multiple videos may be selected to export.

Smart pss record and event tab.png
Smart pssSelect event to download.png

11. Click on the disk icon to save and start the export.

Smart pss disc save icon.png

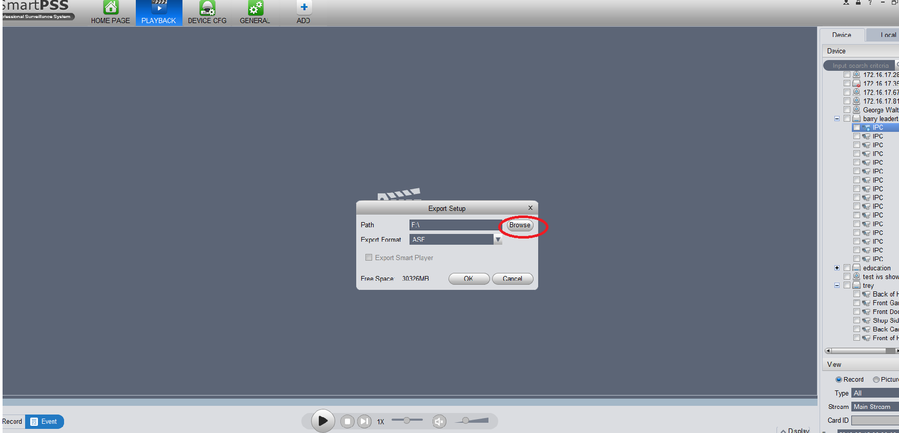

12. Select "Path" and find SD card to back-up to. Note: SD Card must be inserted and unlock

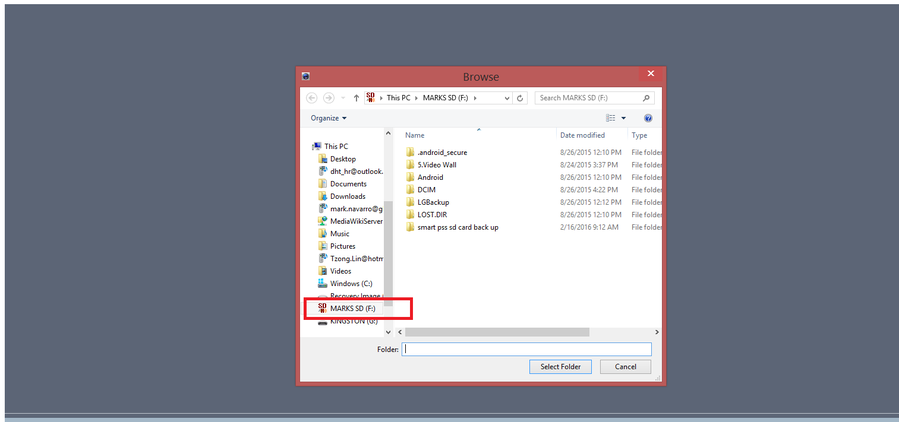

Sd back up 2.png

13. Select "Export Format" (Original Format, ASF, AVI, MP4) and click "OK"

Smart pss export format.png

14. The progress can be viewed clicking on the "Export Progress" icon.

Smart pss export progress icon.png
