Playback/SmartSearch/SMD

SmartSearch: Smart Motion Detection SMD

Description

Playback events triggered by SMD - Smart Motion detection

Prerequisites

  • Dahua Camera with SMD Capabilities
  • Dahua NVR on 4.0 or above firmware

Video Instructions

How To: SMD Playback

Instructions

Icon for type SystemUI New.pngSystemUI New

Prerequisites

  • Dahua Cameras with SMD Capabilities
  • NVR with 4.0+ Firmware

Video Instructions

Step by Step Instructions

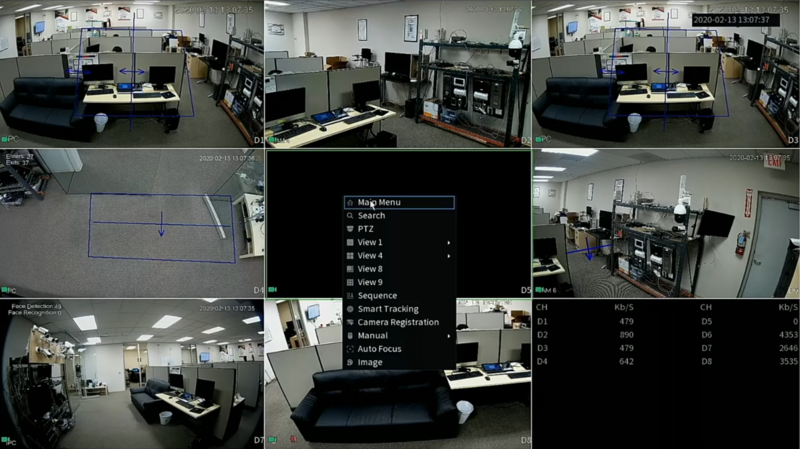

1. Right click and go to Main Menu

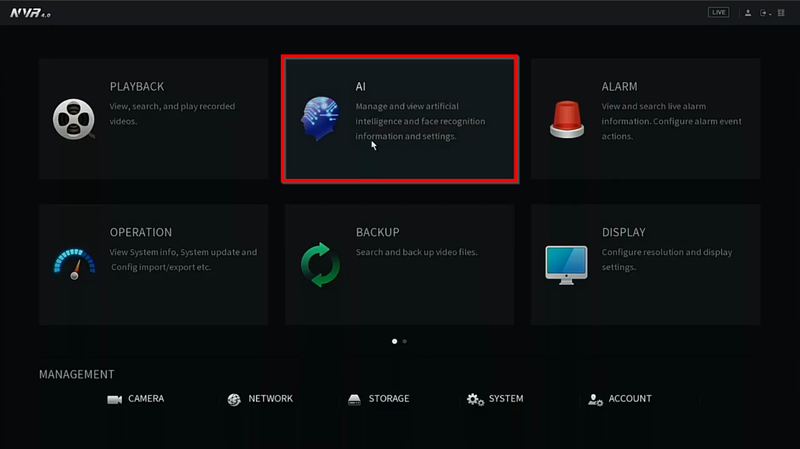

2. Click on the AI Tab

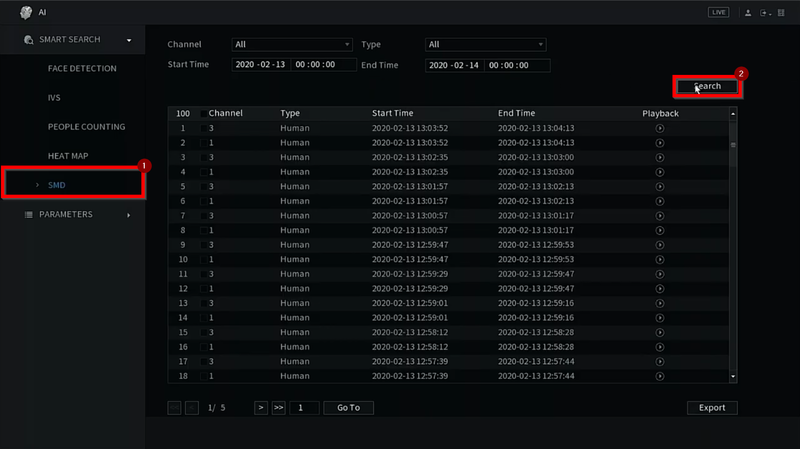

3. Go to Smart Search> SMD> select the time and date you will like to playback and click on Search


4. A list of Events will appear. Click on the Play icon to view the video footage

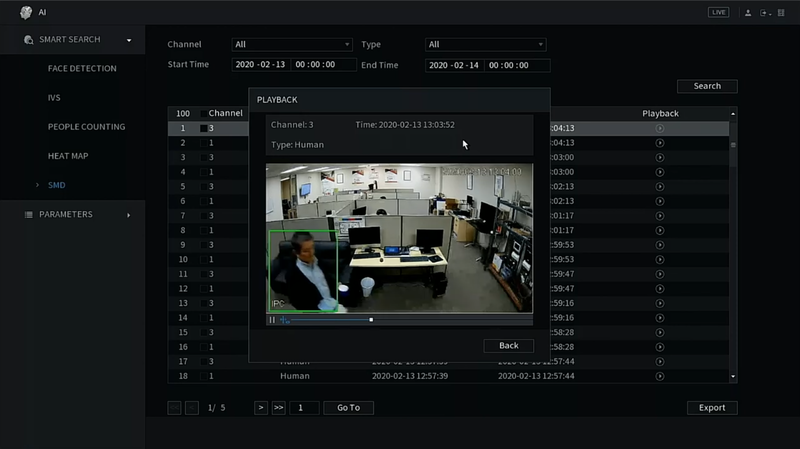

5. The video footage will come up and you can now review it


Icon for type WebUI New.pngWebUI New

Prerequisites

  • Dahua Camera with SMD Capabilities
  • Dahua NVR with 4.0+ Firmware

Video Instructions

Step by Step Instructions

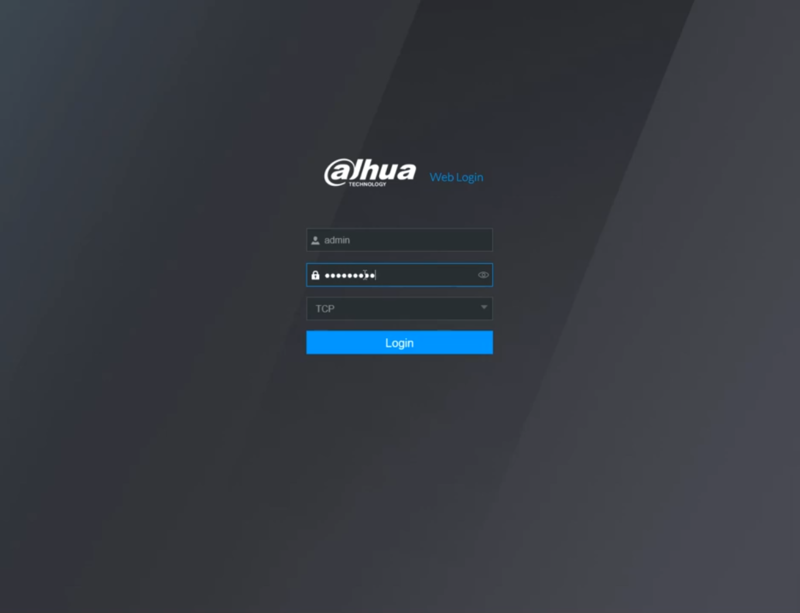

1. Login to the NVR's WEBUI

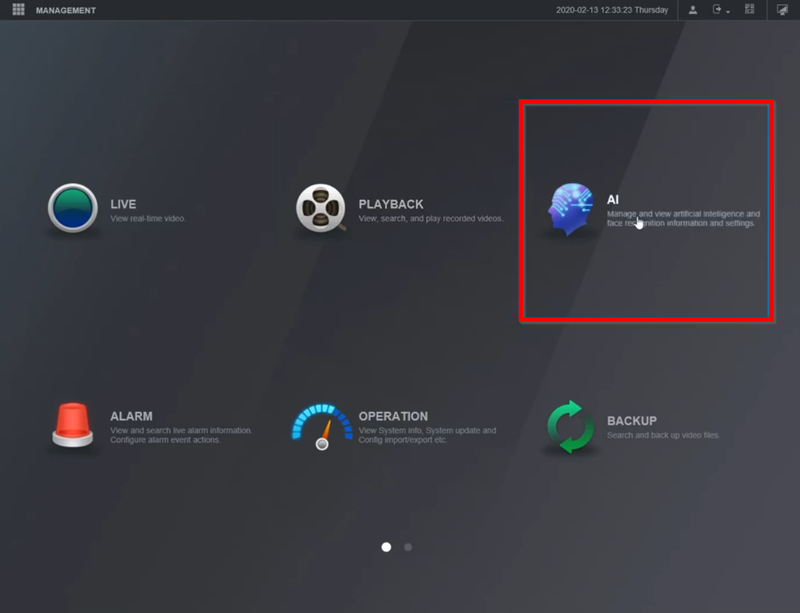

2. Go to the AI Tab

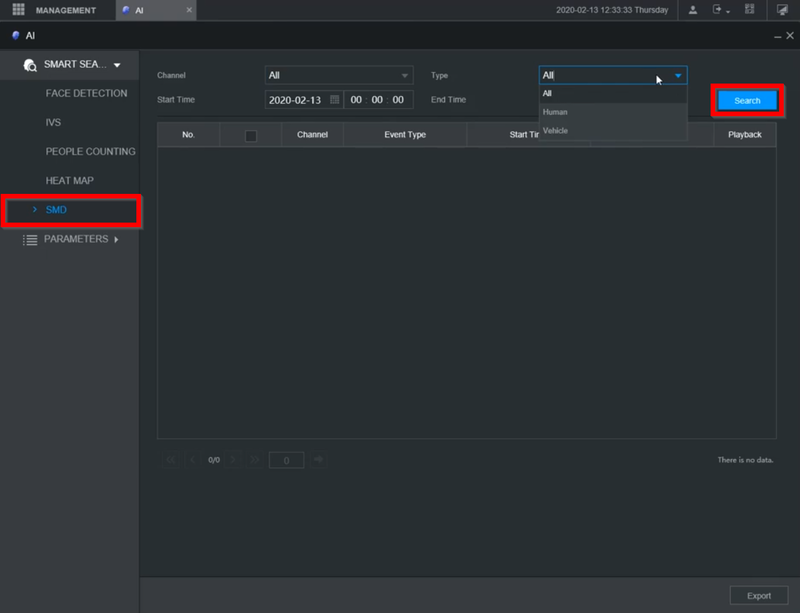

3. Go to Smart Search> SMD> and click on Search

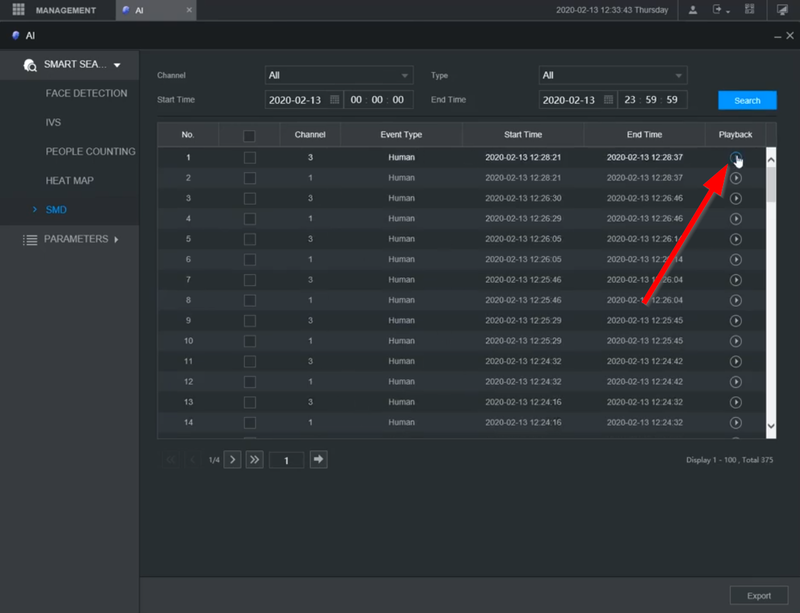

4. The Events will populate on the bottom box. Click on the Play button

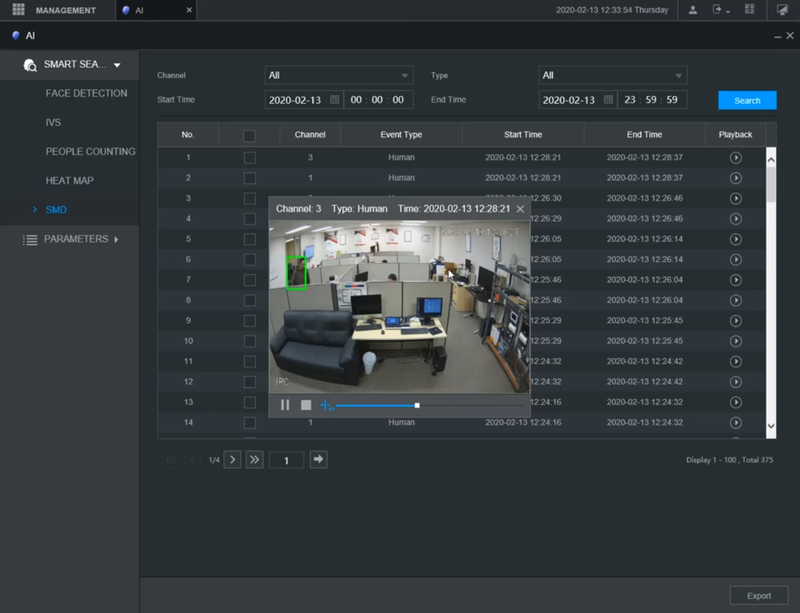

5. The even will come up on a pop up window and you can now review it
