Pattern

Description

Pattern allows the PTZ camera to move according to a created movement Pattern

Memorize dome operation such as pan, tilt, and zoom to repeat. You can call it to repeat the previous operation.

Instructions

Icon for type SystemUI Old.pngSystemUI Old

How to Setup Pattern

Prerequisites

  • Dahua Network PTZ

Video Instructions

Step by Step Instructions

1. From Live View right click to access the menu

Click PTZ

PTZPattern - SystemUI Old - 1.jpg

2. Click the arrow to expand the PTZ menu

PTZPattern - SystemUI Old - 2.jpg

3. Click the gear icon to open the settings

PTZPattern - SystemUI Old - 3.jpg

4. Click the Pattern tab

PTZPattern - SystemUI Old - 4.jpg

5. Enter a Pattern number in the field

PTZPattern - SystemUI Old - 5.jpg

6. Click Start to begin creating the Pattern

PTZPattern - SystemUI Old - 6.jpg

7. An on screen indicator will appear to show the Pattern Setup status.

PTZPattern - SystemUI Old - 7.jpg

Use the onscreen PTZ controls to move the PTZ camera as desired for the pattern

PTZPattern - SystemUI Old - 8.jpg

8. The on screen indicator will show the current status of the setup as a percentage.

100% will be the maximum pattern length that can be created

PTZPattern - SystemUI Old - 9.jpg

9. Click End to stop creating the Pattern

PTZPattern - SystemUI Old - 10.jpg

Right click to exit the PTZ sub menu

10. To run the created Pattern

Enter the Pattern number

Click the Pattern icon

PTZPattern - SystemUI Old - 11.jpg

11. The Pattern will begin and display the current status

PTZPattern - SystemUI Old - 12.jpg

Icon for type SystemUI New.pngSystemUI New

How to Setup Pattern

Prerequisites

  • Dahua Network PTZ

Video Instructions

Step by Step Instructions

1. From Live View right click to access the menu

Click PTZ

PTZPattern - SystemUI New - 1.jpg

2. Click the arrow to expand the PTZ menu

PTZPattern - SystemUI New - 2.jpg

3. Click the gear icon to open the settings

PTZPattern - SystemUI New - 3.jpg

4. Click the Pattern tab

PTZPattern - SystemUI New - 4.jpg

5. Enter a Pattern number in the field

PTZPattern - SystemUI New - 5.jpg

6. Click Start to begin creating the Pattern

PTZPattern - SystemUI New - 6.jpg

7. An on screen indicator will appear to show the Pattern Setup status.

PTZPattern - SystemUI New - 7.jpg

Use the onscreen PTZ controls to move the PTZ camera as desired for the pattern

PTZPattern - SystemUI New - 8.jpg

8. The on screen indicator will show the current status of the setup as a percentage.

100% will be the maximum pattern length that can be created

PTZPattern - SystemUI New - 9.jpg

9. Click End to stop creating the Pattern

PTZPattern - SystemUI New - 10.jpg

Right click to exit the PTZ sub menu

10. To run the created Pattern

Enter the Pattern number

Click the Pattern icon

PTZPattern - SystemUI New - 11.jpg

11. The Pattern will begin and display the current status

PTZPattern - SystemUI New - 12.jpg

Icon for type WebUI Old.pngWebUI Old

How to Setup Pattern

Prerequisites

  • Dahua Network PTZ

Video Instructions

Step by Step Instructions

1. Log into the camera's web interface

Click Setting

PTZPattern - WebUI Old - 1.jpg

2. Under PTZ

Click Function

PTZPattern - WebUI Old - 2.jpg

3. Click Pattern

PTZPattern - WebUI Old - 3.jpg

4. Use the dropdown box to select the Pattern Number

Click Setup

PTZPattern - WebUI Old - 4.jpg

5. Click Start Rec to begin recording the pattern

PTZPattern - WebUI Old - 5.jpg

6. Use the on screen PTZ controls to move the camera as desired to create the pattern

An on screen indicator will appear to show the Pattern Setup status.

The on screen indicator will show the current status of the setup as a percentage.

100% will be the maximum pattern length that can be created

PTZPattern - WebUI Old - 6.jpg

7. Click Stop Rec to end recording the pattern

PTZPattern - WebUI Old - 7.jpg

8. To run the created Pattern

Click Live

PTZPattern - WebUI Old - 8.jpg

9. Under PTZ Function

Use the dropdown box to select Pattern

PTZPattern - WebUI Old - 9.jpg

10. Enter the Pattern number

PTZPattern - WebUI Old - 10.jpg

11. Click Start

The pattern will begin and display the current status

Click Stop to stop the pattern function

PTZPattern - WebUI Old - 11.jpg

Icon for type WebUI New.pngWebUI New

How to Setup Pattern

Prerequisites

  • Dahua Network PTZ

Video Instructions

Step by Step Instructions

1. Log into the web interface of the PTZ

From Live View

Click PTZ Setup on the right side of the screen

Use the dropdown box to select Pattern

PTZPattern - WebUI New - 1.jpg

2. Select Pattern

Enter a Pattern number

PTZPattern - WebUI New - 2.jpg

3. Click Add to begin creating the Pattern

PTZPattern - WebUI New - 3.jpg

4. Click Start Rec

PTZPattern - WebUI New - 4.jpg

5. Use the on screen PTZ controls to move the camera as desired to create the pattern

An on screen indicator will appear to show the Pattern Setup status.

The on screen indicator will show the current status of the setup as a percentage.

100% will be the maximum pattern length that can be created

PTZPattern - WebUI New - 5.jpg

6. Click Stop Rec to end recording the pattern

PTZPattern - WebUI New - 6.jpg

7. To run the created Pattern

Enter the Pattern Number

Click Start

PTZPattern - WebUI New - 7.jpg

8. Click Stop to stop the Pattern

PTZPattern - WebUI New - 8.jpg

Icon for type SmartPSS.pngSmartPSS

How to Setup Pattern

Prerequisites

  • Dahua Network PTZ
  • SmartPSS
  • PTZ camera added to SmartPSS

Video Instructions

Step by Step Instructions

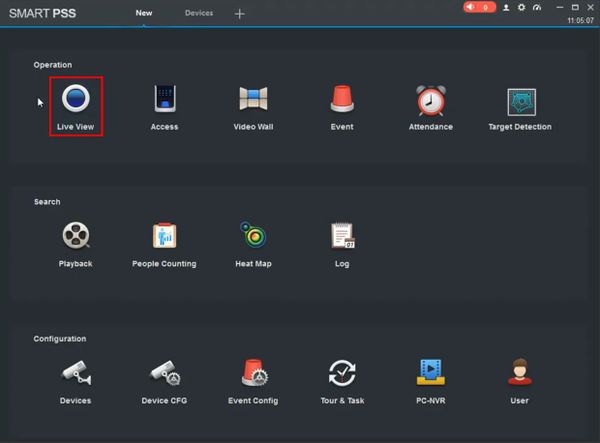

1. From the Main Page of SmartPSS

Click Live View

PTZPattern - SmartPSS - 1.jpg

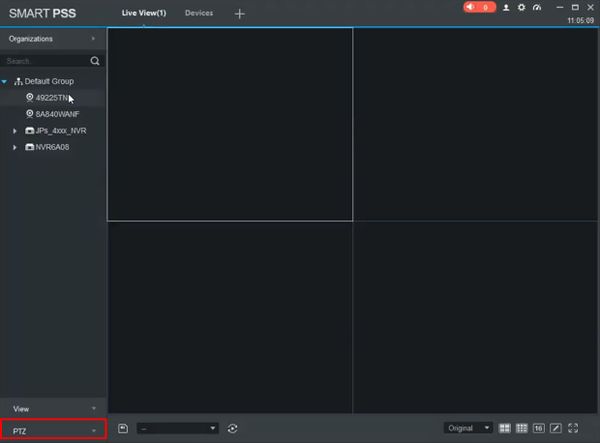

2. Click to expand the PTZ section on the left side of the screen

PTZPattern - SmartPSS - 2.jpg

3. Click More Functions

PTZPattern - SmartPSS - 3.jpg

4. Use the dropdown box to select Pattern

PTZPattern - SmartPSS - 4.jpg

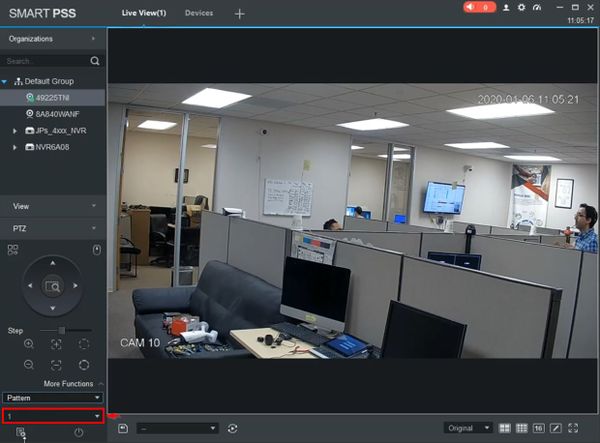

Use the dropdown box to select a Pattern Number

PTZPattern - SmartPSS - 5.jpg

5. Click the Start Setting Pattern icon to begin creating the Pattern

PTZPattern - SmartPSS - 6.jpg

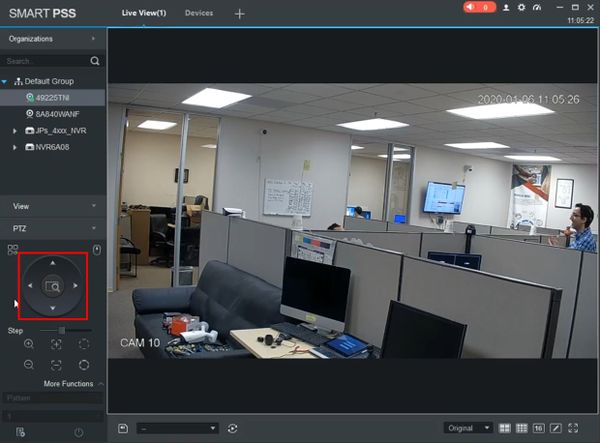

6. Use the onscreen PTZ controls to move the PTZ camera as desired for the pattern

PTZPattern - SmartPSS - 7.jpg

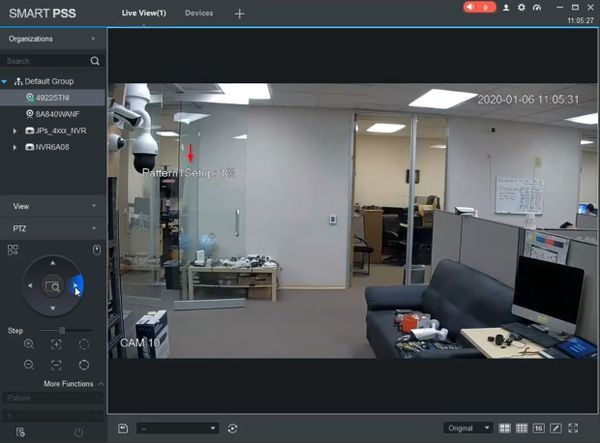

An on screen indicator will show the current status of the setup as a percentage.

100% will be the maximum pattern length that can be created

PTZPattern - SmartPSS - 8.jpg

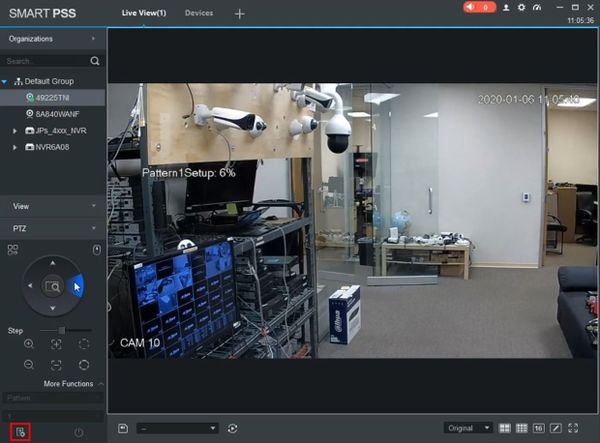

7. Click the Stop Setting Pattern icon to stop creating the Pattern

PTZPattern - SmartPSS - 10.jpg

8. To run the created Pattern

Use the dropdown box to select Pattern

Enter the Pattern number

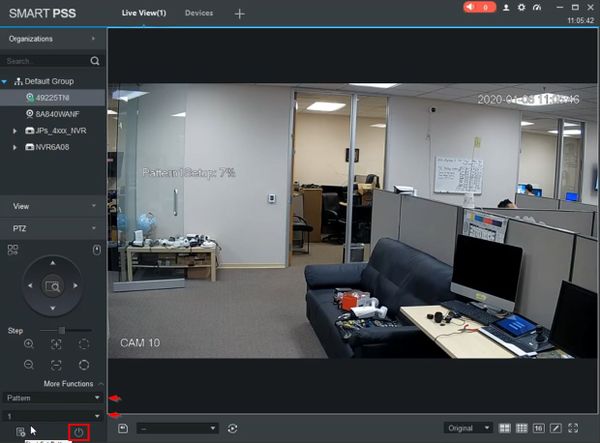

Click the Start icon

PTZPattern - SmartPSS - 11.jpg

Click again to stop the Pattern

Icon for type DSS Express S.pngDSS Express

How to Setup Pattern

Prerequisites

  • Dahua Network PTZ
  • DSS Express S
  • PTZ camera added to DSS Express S

Video Instructions

Step by Step Instructions

1. From Live View

Click to expand the PTZ section on the left side of the screen

Click the Arrow to open advanced settings

PTZPattern - DSS Express S - 1.jpg

2. Click the Pattern icon

PTZPattern - DSS Express S - 2.jpg

3. A list of patterns for the selected device will be displayed

PTZPattern - DSS Express S - 3.jpg

4. Click Start Record icon next to a Pattern Number in the list to begin creating the Pattern

PTZPattern - DSS Express S - 4.jpg

5. An on screen indicator will appear to show the Pattern Setup status.

Use the onscreen PTZ controls to move the PTZ camera as desired for the pattern

PTZPattern - DSS Express S - 5.jpg

The on screen indicator will show the current status of the setup as a percentage.

100% will be the maximum pattern length that can be created

6. Click Stop Record to stop creating the Pattern

PTZPattern - DSS Express S - 6.jpg

7. To run the created Pattern

Click the Start icon next to the Pattern in the list

PTZPattern - DSS Express S - 7.jpg

Click Stop to stop the pattern

PTZPattern - DSS Express S - 8.jpg
