DSS Windows/Express/Video Intercom

How to use Video Intercom

Description

This page is to assist with integration of Dahua Video Intercom products with DSS Express

The example device information listed above each Step By Instructions is meant to be used as a reference

Make sure each step is followed in order and that no information is incorrect or left missing

Prerequisites

  • Preconfigured DSS Server and Client Software
  • VTO/VTH Device(s) powered on, connected to network

Instructions

  • VTH Setup
  • VTO Setup
  • DSS Express Setup

[Setup]


VTH Setup

Example Device Information:

Local Setting
Device IP Address Room No.
VTH1510CH 192.168.2.167 9901#0
SIP Server
Server IP Network Port User Name Register Password Domain User Name Logon Password
192.168.2.113 5080 (VTH Building Number) 123456 (Always This Password) VDP system DahuaWIN2017 (DSS Express Server Password)

Video Instructions

Step by Step Instructions

1. At the main screen of the device, Long press (for about 5 seconds) the Settings icon until a window pops up asking for a password

Video Intercom - VTH - DSS Express - 1.jpg

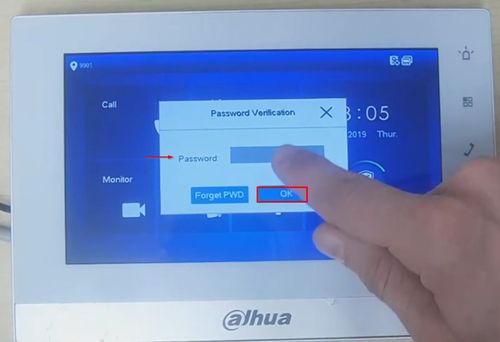

2. Enter the password (Default: 123456) and press OK

Video Intercom - VTH - DSS Express - 2.jpg

3. The Advanced Settings will be displayed

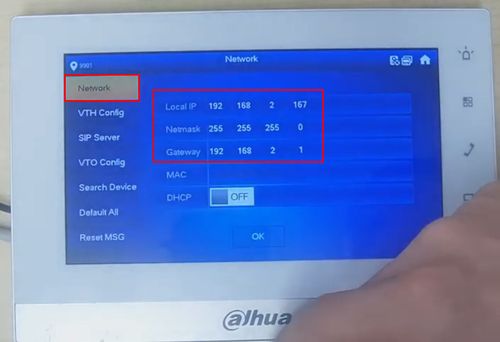

Under the Network information, confirm the Network information of the VTH device

Video Intercom - VTH - DSS Express - 3.jpg

4. Under VTH Config - The Room No. can be adjusted by pressing/tapping inside the field and a keyboard will be displayed

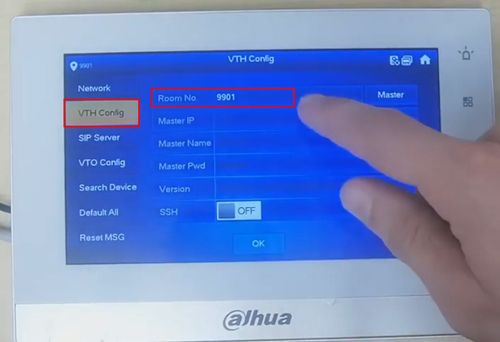

Video Intercom - VTH - DSS Express - 4.jpg

5. Enter the correct Room No. , for this guide it will be 9901#0 .

Press OK

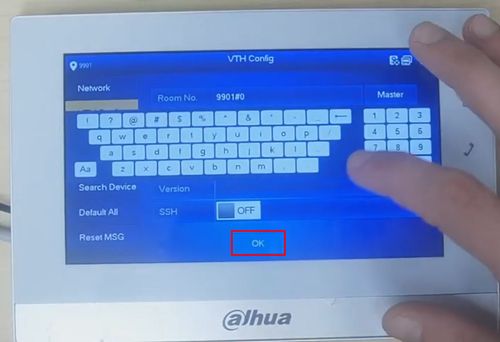

Video Intercom - VTH - DSS Express - 5.jpg

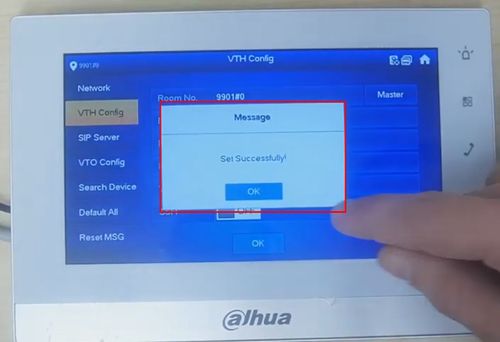

6. A message will appear confirming the settings have been set successfully

Video Intercom - VTH - DSS Express - 6.jpg

7. Under SIP Server, enter the information from the DSS Express Server, since it will be acting as the SIP server in this deployment.

All information must be entered on this screen

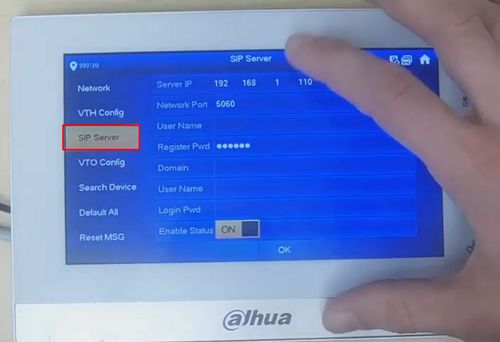

Video Intercom - VTH - DSS Express - 7.jpg

  • Server IP: IP of DSS Express Server - in this example 192.168.2.96
  • Network Port: 5080
  • User Name: Leave at default
  • Register Pwd: Leave at default
  • Domain:VDP
  • User Name:username for DSS Express Server - in this example system
  • Login Pwd:password for user in DSS Express

8. Once the SIP Server information is entered, make sure Enable Status is set to On, then press OK

Video Intercom - VTH - DSS Express - 7-1.jpg

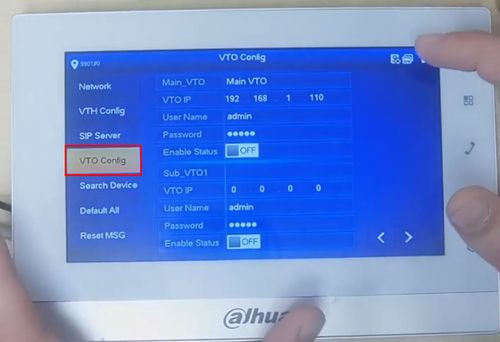

Video Intercom - VTH - DSS Express - 8.jpg

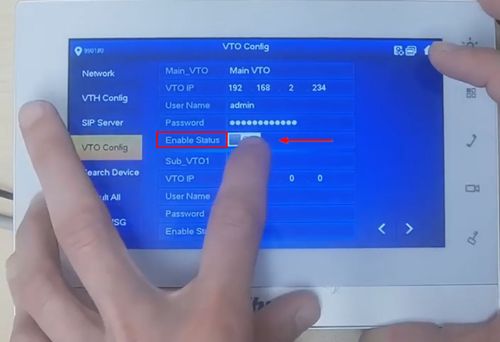

Video Intercom - VTH - DSS Express - 9.jpg

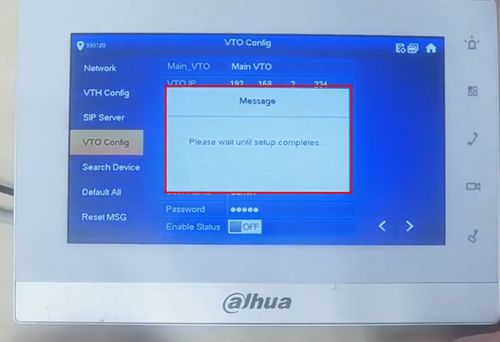

Video Intercom - VTH - DSS Express - 10.jpg

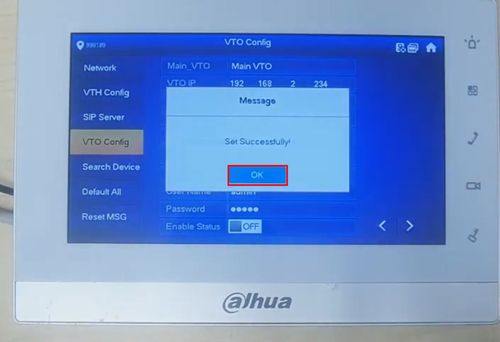

Video Intercom - VTH - DSS Express - 11.jpg

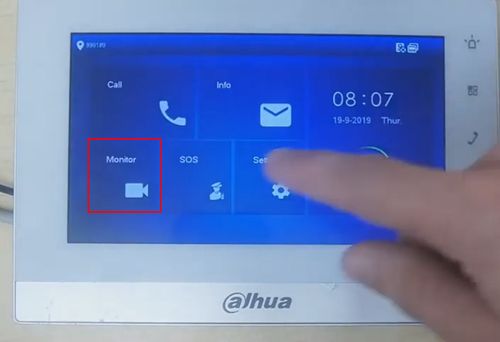

Video Intercom - VTH - DSS Express - 12.jpg

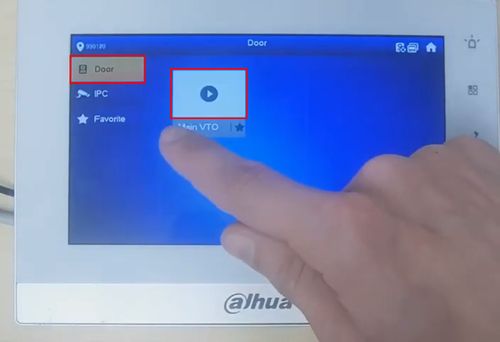

Video Intercom - VTH - DSS Express - 13.jpg

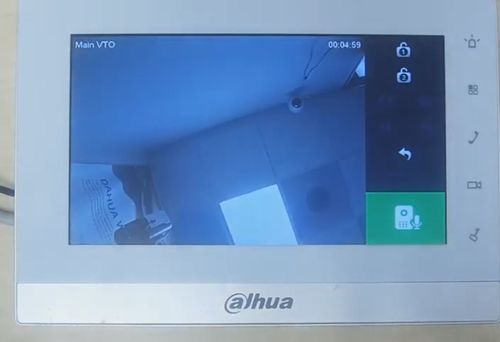

Video Intercom - VTH - DSS Express - 14.jpg

VTO Setup

Example Device Information:

Local Setting
Device IP Address Device Type Villa Call No Building No. Unit No. VTO No. Call Centre Time
VTO2111D-WP 192.168.2.234 Villa Station 9901 0(Not Enabled) 0(Not Enabled) 8001 Disabled
SIP Server
SIP Server Server Type SIP Server IP Port Username Password SIP Domain SIP Server Username SIP Server Password Alternate IP Addr Alternate Username Alternate Password Alternate VTS Address Alternate Server
Disabled Express/DSS (IP of DSS Express) 192.168.2.113 5080 8001(VTO No.) 123456(Leave Alone) VDP system(DSS Express User Name) DahuaWIN2017(DSS Express Password) (Leave Blank) (Leave Blank) (Leave Blank) (Leave Blank) Disabled
