How to Modify IP Address of IP Camera / Change IP Camera that is stuck on "192.168.1.108"

Description

This guide will show how to initialize a Dahua IP Camera and modify the IP Address

Prerequisites

  • Windows Computer to use Config tool
  • Wired or wireless connection to the router or switch
  • Powered IP camera, connected to the network

Video Instructions

Step by Step Instructions

How To Initialize Camera

Preparing the Computer

The computer should be assigned an IP that is set to the same subnet as the default IP the device will be at. Most Dahua devices will default to the IP address 192.168.1.108

1. Launch ConfigTool

Initialize Dahua IP Camera and Change IP Address - 1.jpg

2. Uninitialized devices will appear in the list at their default IP 192.168.1.108

Initialize Dahua IP Camera and Change IP Address - 2.jpg

3. To initialize the camera:

  • Check the box next to the device in the list
  • Click Initialize

Initialize Dahua IP Camera and Change IP Address - 3.jpg

4. The Device initialization window will appear

Devices on the network that have not been initialized will appear in this window

Check the box next to the device then click Initialize

Initialize Dahua IP Camera and Change IP Address - 4.jpg

5. Continue with device initialization:

  • Create a password for the device by entering it twice in the Password fields
  • Enter an email address, which is used for password reset

Click Next

Initialize Dahua IP Camera and Change IP Address - 5.jpg

6. Select the options for 'Easy4ip' and 'Auto-check for updates' as desired then click OK

Initialize Dahua IP Camera and Change IP Address - 6.jpg

7. Device initialization will begin to process

Initialize Dahua IP Camera and Change IP Address - 7.jpg

8. A message will confirm a successful initialization.

Initialize Dahua IP Camera and Change IP Address - 8.jpg

Click Finish

How To Change IP Address

1. From the 'Modify IP' section of ConfigTool

Click 'Search setting' at the top of the page

Initialize Dahua IP Camera and Change IP Address - 9.jpg

2. Enter the username/password for the device (created in the previous guide)

Then click OK

Initialize Dahua IP Camera and Change IP Address - 10.jpg

3. The device will appear in the list.

To change the IP address for the device:

  • Check the box next to the device
  • Click Modify IP

Initialize Dahua IP Camera and Change IP Address - 11.jpg

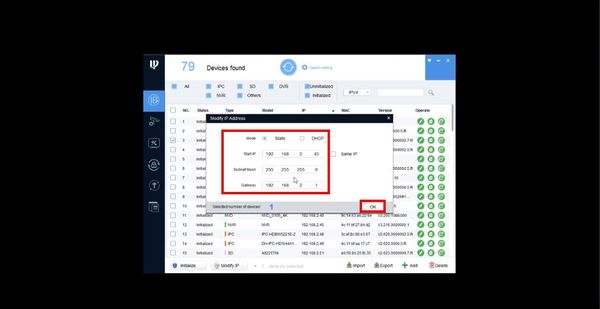

4. The Modify IP Address window will appear

Change the IP as desired, entering all information

  • Mode: Static or DHCP
  • Start IP: IP of device
  • Subnet Mask: Subnet mask for network
  • Gateway: Gateway for network

Then click OK

Initialize Dahua IP Camera and Change IP Address - 12.jpg

5. A green check mark next to the device in the list will confirm a successful IP change

Initialize Dahua IP Camera and Change IP Address - 13.jpg

6. Click the Refresh button

Initialize Dahua IP Camera and Change IP Address - 14.jpg

7. The device will appear in the list with the updated IP information

Initialize Dahua IP Camera and Change IP Address - 15.jpg
