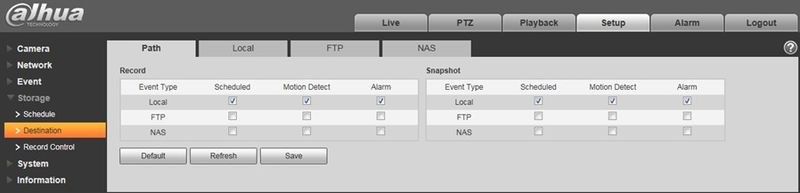

IPCStorageDestination

Destination

Path


Parameter

Function

Event Type

It includes: scheduled, motion detect and alarm.

Local

It saved in the SD card.

FTP

It saved in the FTP server.

NAS

It saved in NAS disk.

Path can config record and snapshot storage path. There are three options: Local, FTP and NAS. You can only select one mode. System can save according to the event types. It is corresponding to the three modes (general/motion/alarm) in the Schedule interface. Please check the box to enable the save functions.

Note: Only device supports SD card has local.

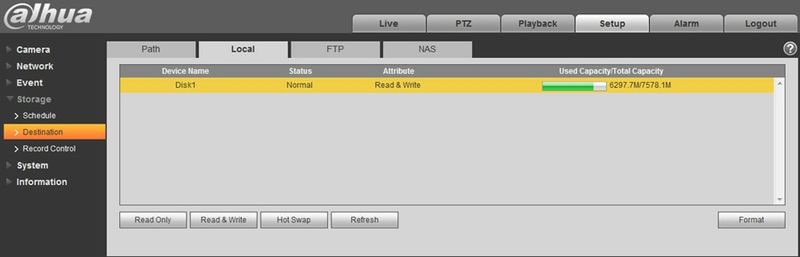

Local

Here you can view local Micro SD card or NAS disk information. You can also operate the read-only, write-only, hot swap and format operation. IPCDestinationLocal.jpg

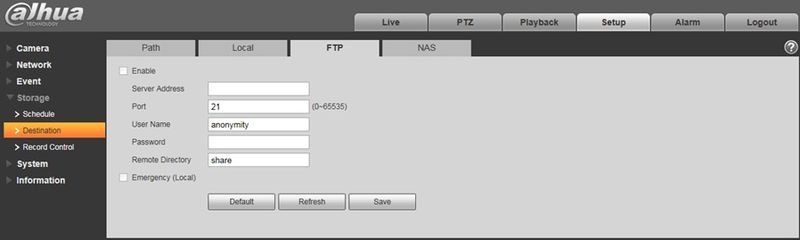

FTP

You need to check the box to enable the FTP function. When network disconnect occurred or there is malfunction. Emergency storage can save the record/snapshot picture to the local SD card. IPCDestinationFTP.jpg

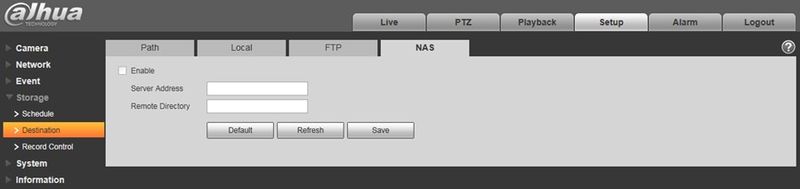

NAS

You need to check the box to enable the NAS function. Select NAS storage, fill in NAS server address and corresponding store path, then you can store video file or pictorial information in the NAS server. IPCDestinationNAS.jpg

Parameter

Function

Server Address

Set IP address of NAS server.

Remote Directory

Set storage directory, videos and pictures can be stored in to corresponding server directory.
