IPC3G

3G

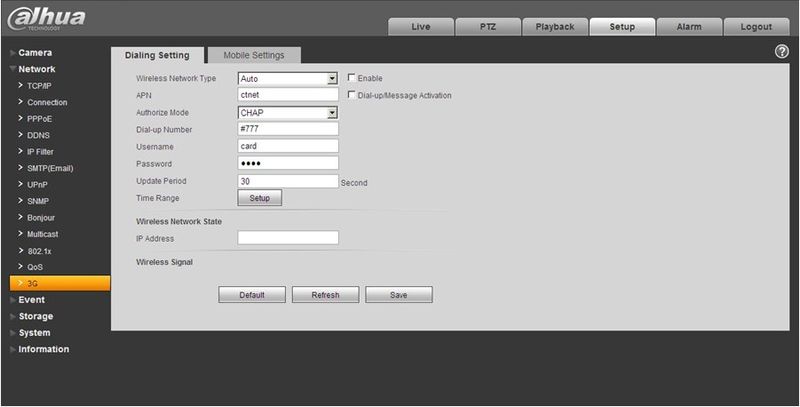

Dialing Settings

Note: This function is only for series with 3G module. 3G is a mobile communication system which makes wireless communication integrates with Internet and multimedia communication. So far, the device supports two wireless interface standards which are confirmed by ITU, which are China Telecom and China Unicom respectively.


Parameter

Function

Wireless connection type

The default is auto and it supports dial-up, sms and incoming call.

Enable

Check to enable 3G module.

Authentication mode

The authentication mode is CHAP for Telecom common card, both Mobile and Unicom have no authentication mode; for designed network card, it is different according to different cards.

Dialing mode

The dialing number is #777 for Telecom common card, both Mobile and Unicom are *98*1#; for designed network card, it is different according to different cards.

User name

The user name is card for Telecom common card, both Mobile and Unicom have no user name; for designed network card, it is different according to different card.

Password

The password is card for Telecom common card, both Mobile and Unicom have no user name; for designed network card, it is different according to different card.

Update period

It is period for device to receive 3G signal every 30s other than scheduled period. The default is 30s. Cut off dialing to save flow.

Time range

You can set dial-up interval. You also can dial if you enable dial-up/sms. The dial-up/sms and dial-up interval is related.

IP address

It displays received IP when 3G dial-up succeeds.

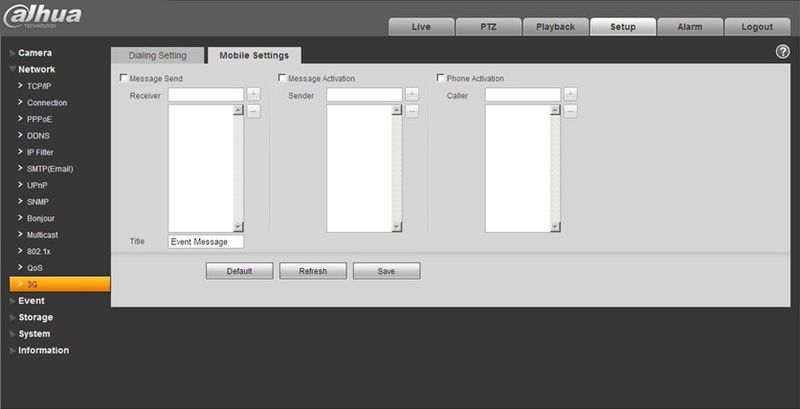

Mobile Settings


Parameter

Function

SMS sending

In event management, check corresponding sms, so when

there is event, a sms will be sent to mobile phone in

corresponding receiving list.  To use this function, you shall

check sms enable in event management interface.

SMS enable

Mobile phone numbers in the list can enable/disable dial-up function and reboot device by sending sms to SIM card in the device.

Tel Activation

Mobile phone numbers in the list can call the SIM card in the device to enable/disable dial-up function.
