Add a Device via P2P using SmartPSS

Description

This allows you to add cameras or recorders via P2P to SmartPSS

Prerequisites

  • SmartPSS
  • SN Number of device located on bottom of device recorder. Can also be located from the local menu of the recorder under menu -> system info or from Dahua Web service under Setup -> Network -> P2P
  • P2P must be enabled from the main menu of the recorder under Settings -> Network -> P2P or from Dahua Web Service under Setup -> Network -> P2P. How To Setup P2P

Video Instructions

Step by Step Instructions

1. Locate the serial number of your NVR or DVR. The serial number can be found at the following locations:

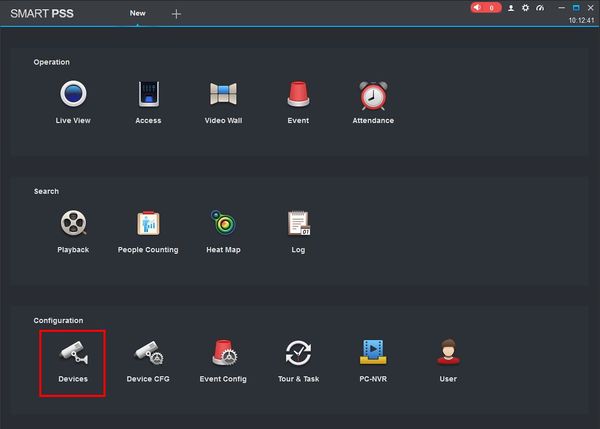

2. Launch SmartPSS. At the main page click Devices

How To Add Device P2P - SmartPSS - 1.jpg

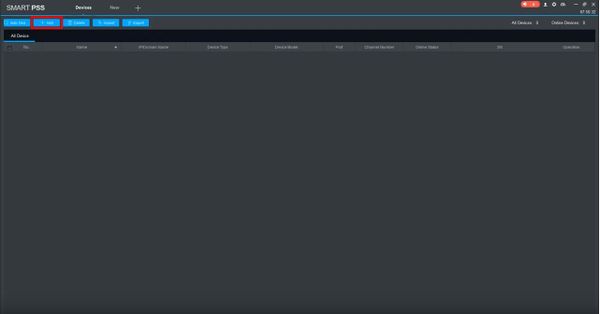

3. Click +Add to add a device

How To Add Device P2P - SmartPSS - 2.jpg

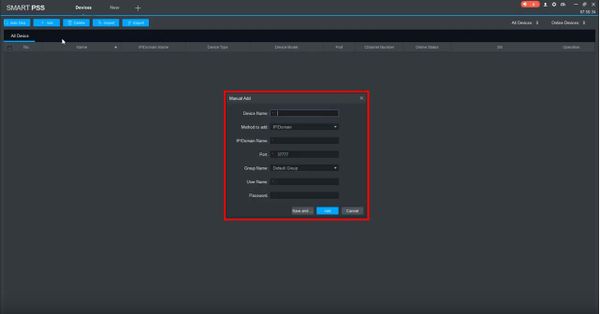

4. The Manual Add window will appear.

How To Add Device P2P - SmartPSS - 3.jpg

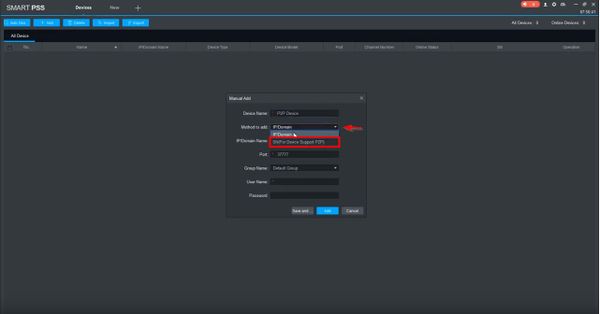

5. Use the drop-down box to change 'Method to add' to 'SN(For Device Support P2P)'

How To Add Device P2P - SmartPSS - 4.jpg

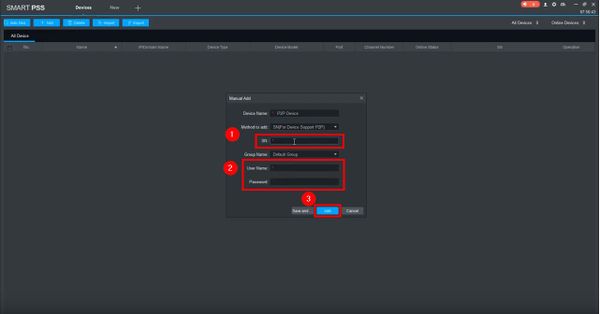

6. Enter the Serial Number for the unit in the field SN.

Enter the username and password for the device then click Add

How To Add Device P2P - SmartPSS - 5.jpg

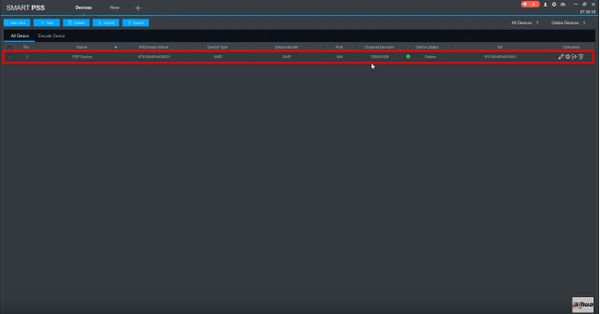

7. The added device will appear in the Device List

How To Add Device P2P - SmartPSS - 6.jpg

8. From the main page of SmartPSS click Live View

How To Add Device P2P - SmartPSS - 7.jpg

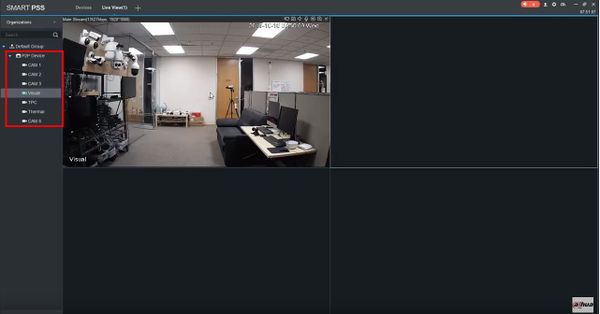

9. The added device will apear in the Device List and can be expanded to view all video channels from the device.

How To Add Device P2P - SmartPSS - 8.jpg
