How to Setup Alarm Recording Using A Physical Alarm

Pre-Requisites

  • A NVR or IP Camera with an Alarm Out
Error creating thumbnail: Unable to save thumbnail to destination

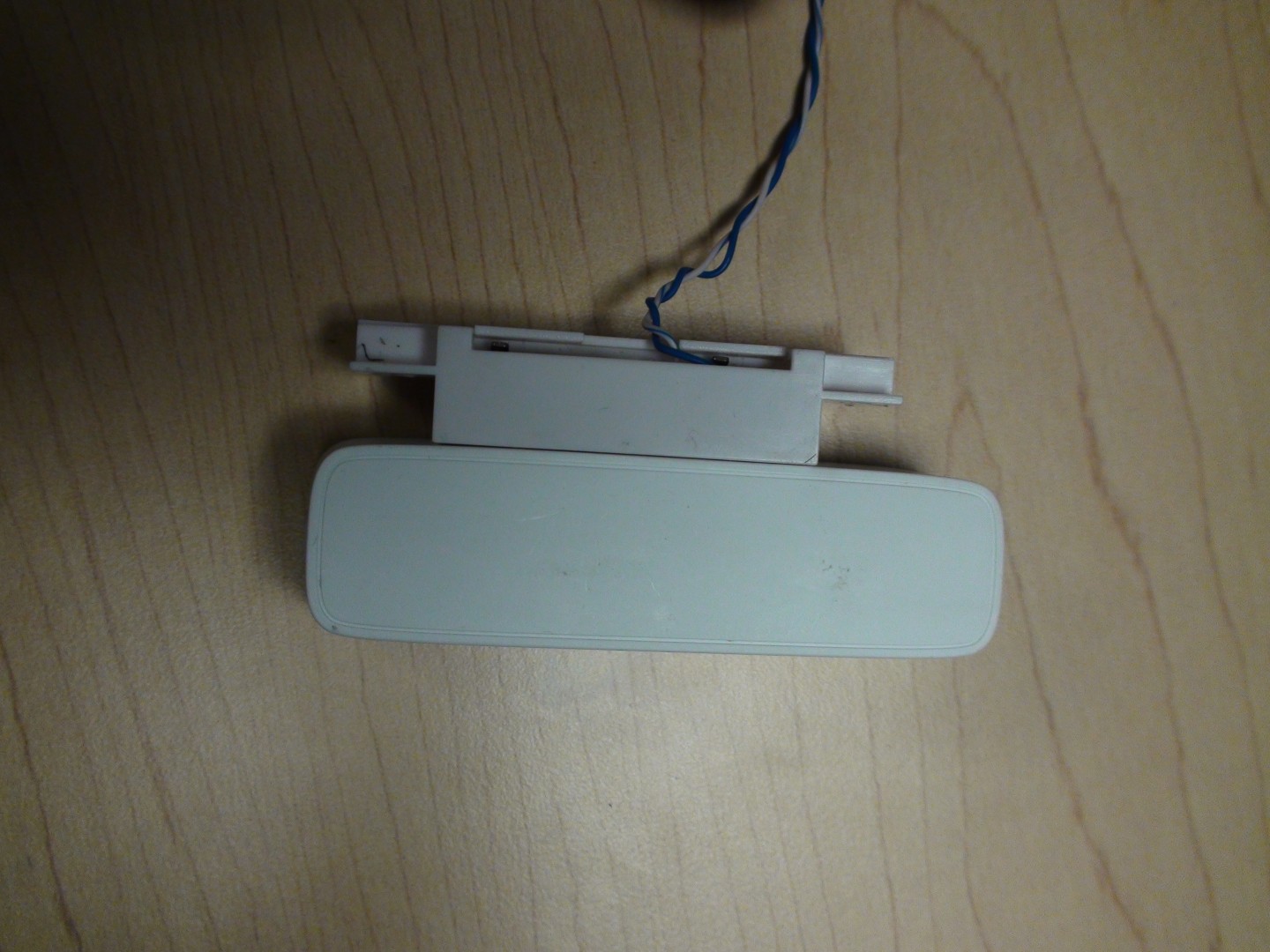

  • A low voltage physical alarm
Error creating thumbnail: Unable to save thumbnail to destination
  • Dual pair 24 gauge run to the physical alarm
  • Alarm block
Error creating thumbnail: Unable to save thumbnail to destination

Setup

1. Identify which alarm out block you wish to use to connect your physical alarm. For this example we are going to use, "Alarm Out Channel 1"

Error creating thumbnail: Unable to save thumbnail to destination

2. Connect the cable to your physical alarm.

Error creating thumbnail: Unable to save thumbnail to destination
->
Error creating thumbnail: Unable to save thumbnail to destination

3. Connect the cable to the alarm block on the ports labeled, "IN1" and "Ground"

Error creating thumbnail: Unable to save thumbnail to destination

4. Login to the NVR, and click, "Setup"

Error creating thumbnail: Unable to save thumbnail to destination

5. Click, "Event"

Error creating thumbnail: Unable to save thumbnail to destination

6. Click, "Alarm"

Error creating thumbnail: Unable to save thumbnail to destination

7. Select the Channel, and enable, "Local Alarm"

Error creating thumbnail: Unable to save thumbnail to destination

8. Select either, "NO" or "NC"

  • NO -Normally Open
  • NC -Normally Close
Error creating thumbnail: Unable to save thumbnail to destination

9. Next select what actions you want the system to perform, when the alarm is activated.

Error creating thumbnail: Unable to save thumbnail to destination

10. Click, "OK"

Error creating thumbnail: Unable to save thumbnail to destination
