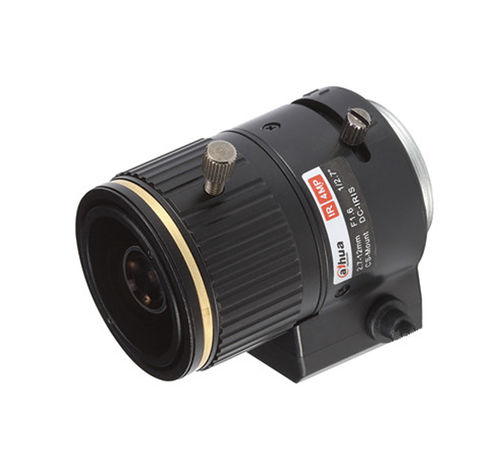

DH PLZ1040 D

DH-PLZ1040-D

Features

• X

Specifications

Model		DH-PLZ1040-D
Parameter
Image format		1/2.7”
Focal length		2.7-12mm
Lens pixel		4MP
Aperture		F1.6
Field Angle(D*H*V)	1/2.7	W: 137.8°(D)x102.6°(H)x74.3°(V)~T: 37.2°(D)x29.9°(H)x22.6°(V)
	1/3"	W: 120.1°(D)x91.3°(H)x66.3°(V)~T: 33.9°(D)x27.1°(H)x20.3°(V)
M.O.D.		0.3m
TV Distortion		-69.58%(w) ~ -3.3%
IR Correction		Yes
Lens Control	Focus	Manual
	Zoom	Manual
	Iris	DC-Iris
Mount		CS
Dimension		∅33.7x57.6mm
Weight		73.5g
Operating temperature		-30ºC +70ºC
Humidity		<90% RH
